Product Profile

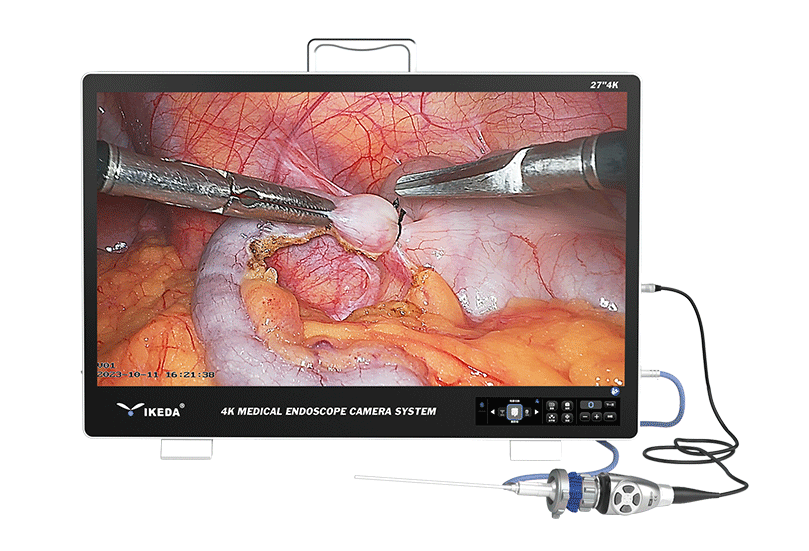

YKD-9127 camera provides clear images and true colors.
4K Imaging
full-screen horizontal resolution > 1800 lines
Standard White Light Mode, Multi-Display Mode.
Built-in video and picture capture function
Rich 4K output interface (3G-SDI/DVI/12G-SDI/HDMI 2.0)

Integrated 27" Medical Monitor



1. Resolution: 3840*2160P
2. Endoscope: Rigid Optic Endoscope, 0°/30°
3. Function: White light/Image Freezing/Electronic Zooming in and out/Dual-Scope Display/Removing moiré etc.
4. Focusing way: Manual
5. Cold Light Source: 20 levels adjustable 1500LM

Product Feature
4K Ultra HD Definition
4K Ultra HD Definition
Large Viewing Angles, Wide Color Gamut
Large Viewing Angles, Wide Color Gamut
In-Built USB Storage
In-Built USB Storage
11-Clinical-Specialties
11-Clinical-Specialties

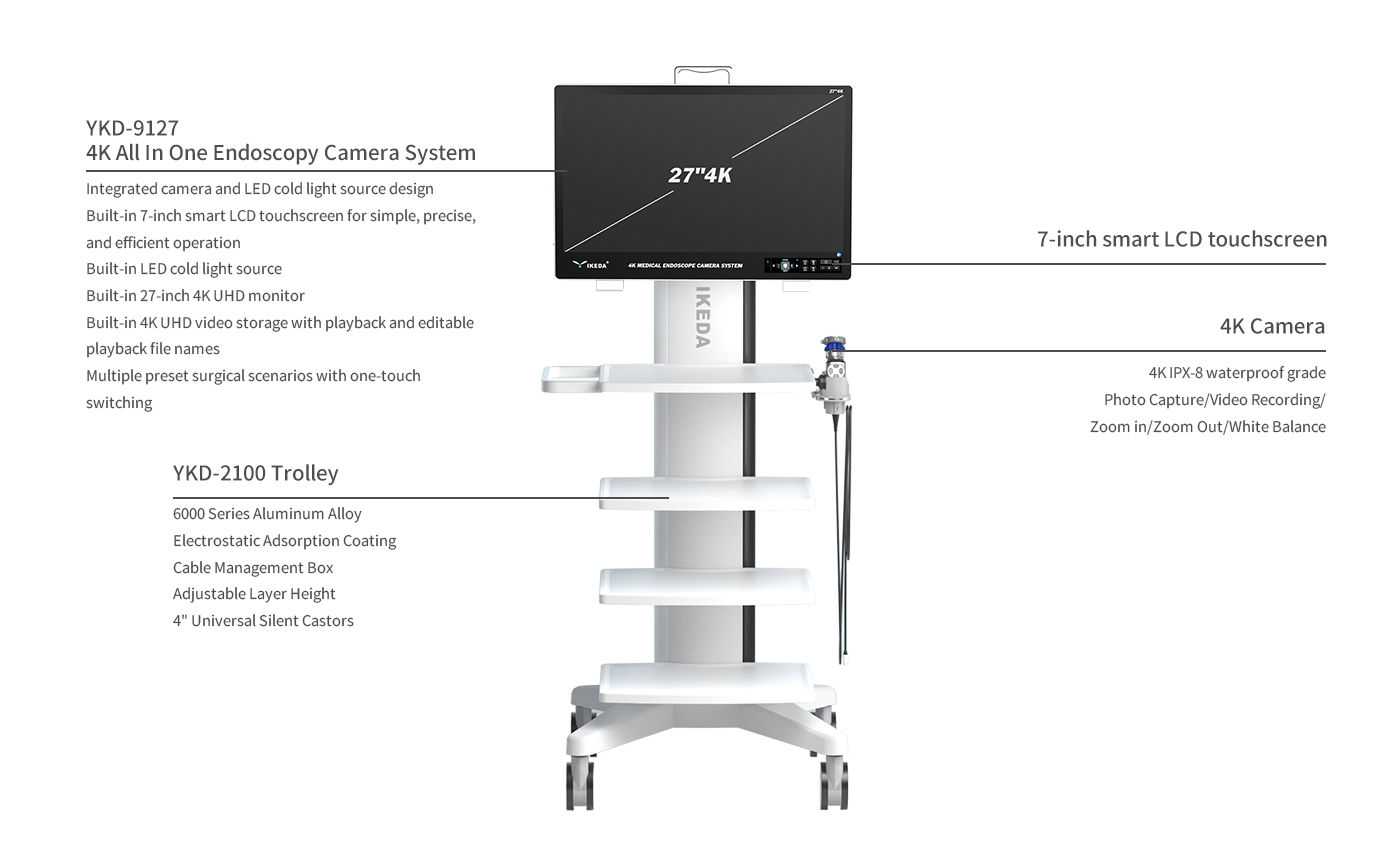

  • Camera Control Unit -YKD-9127
  • Camera Head -IPX8 waterproof grade
  • Integrated 27" Medical Monitor

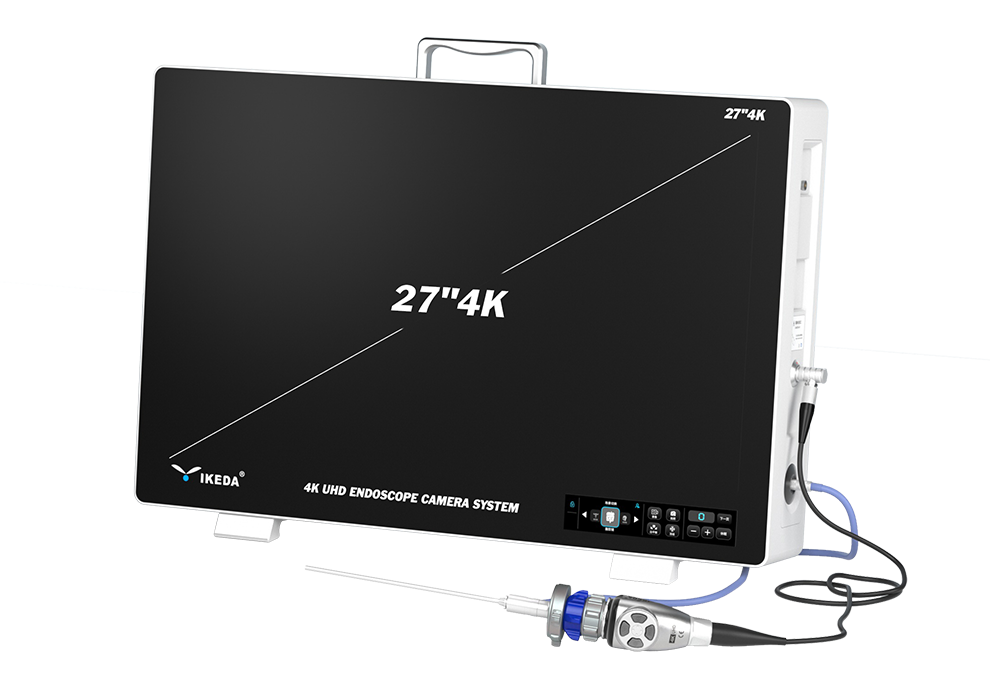

YKD-9127-4K UHD Endoscopy Unit

  • 4K UHD resolution
  • Universal C Mount Threading
  • Integrated LED light source
  • Photo capture, Video recording, Zoom
  • 7 USER Presets for surgical application
  • Image enhancement of colour and structure

4K Camera Head

  • IPX8 waterproof grade
  • 4K Zoom Coupler
  • User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance

Laparoscopes

  • Ultra High-resolution images compatible with 4K camera system
  • Scratch-resistant sapphire lens
  • Fog reduction function
  • Autoclavable lens
  • Compatible with third-party optical fiber cables
  • Wolf adapter, Storz adapter, ACMI adapter
Product Detail

Item ID

YKD-9127

Camera

1/2.5 Inch Full HD SONY CMOS

Image Size

3840*2160

Frame rate

60fps

Scanning System

Progressive scanning

Pixels

8,300,000 Pixels

Resolution

3840*2160, 1800TVl

LED Light Source

100W, Cold Light Source

Video Output

DVI, HDMI,CVBS

Minimum Illuminance

0.5LUX

Color Temperature

5100-7000K

Luminous Flux Value

≥800lm

Color Rendering Index

≥90

/Monitor

32”

AC Input

AC100-240V 50/60HZ

Video Recording

Build-In USB



White Balance

AWB & MWB



Camera Control

WB & Photo Capture

SNR

50dB, Tolerance 20%
