Founded more than a decade ago, IKEDA Medical specializes in endoscopic imaging systems. IKEDA endoscopes have continually innovated and broken through from SD to HD, 3D to 4K. As CMOS cameras develop, the number of choices increases. Continuous technological advancements allow procedures to be carried out in a safer manner. 1/2.3” camera provides clear images and true colors. The procedure is even more effective when combined with IKEDA monitors and cold light sources.
~IPX8 Waterproof Camera Head, 2.3” Chip CMOS Image Sensor
~One Tap Switch for 11 Surgical Scenes
~High definition resolution 1920*1080 pixels
~on-device HD video recording and image capturing (optional)
~USB Flash drive (optional)
FULL HD Endoscope System
- Camera Control Unit-YKD-9102-T
- Camera Head -IPX8 waterproof grade
- 4K Monitor
- Medical trolley -YKD-2100

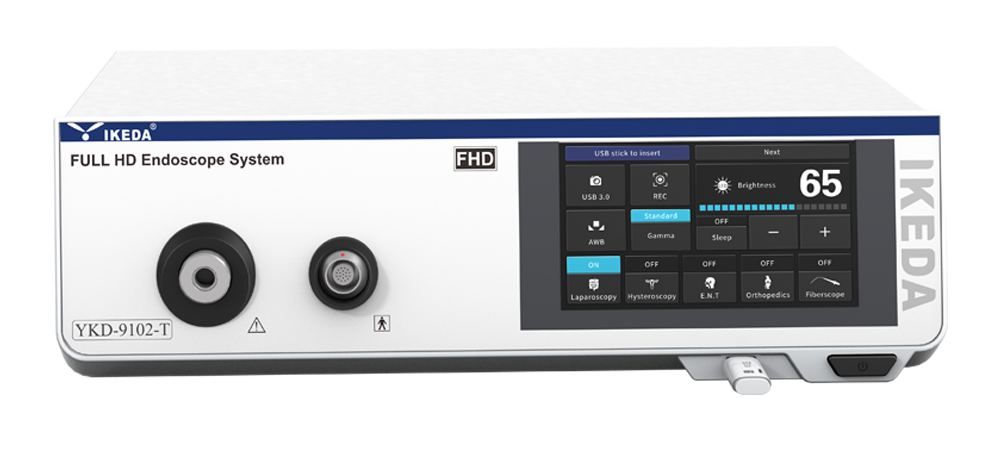

YKD-9102-T FULL HD Endoscope System
- 1/2.3 SONY CMOS FULL HD Image Sensor
- Can be matched with stroboscopic light source for stroboscopic laryngoscopy
- FHD camera head and LED cold light source integrated
- Built-in USB FULL HD image storage, Integrated photo/video recording system
- 11 surgical modes are optional
FHD Camera
- FHD IPX-8 waterproof grade
- User-Definable : Photo Capture/Video Recording/
- Zoom in/Zoom Out/White Balance
4K Monitor
- 3840x2160 ultra-high-definition image output,showing richer textures and more accurate tissue identification
- 3840x2160 pixel image output, showing richer texture, more accurate tissue identification
- Wider color gamut, truly restore the color of organs and tissues, and locate blood vessels, lymph nodes and nerves faster
- CE/ROHS/FCC certified
|
Camera head |
Full HD imaging(1920x1080),1/2.3"SONY CMOS |
|
Voltage range (current consumption) |
·100-240 V(50 VA) |
|
Frequency |
50-60Hz |
|
Device protection |
2xT3,15 A |
|
Video system |
Image resolution: FHD 1920× 1080 Horizontal resolution: 1200TVL SNR:60DB,Tolerance20% |
|
Screen Size |
/ |
|
Light Source |
In-Built 100W |
|
Recording (Options) |
Image format:JPG 1920x1080, Mpeg-4 (H.264 Codec): Image rate 60fps Connection:USB |
|
Connections |
Video Out Terminal, 1 DVI. 1HDM, 1*CVBS |
|
Protection Class |
·I |
|
Safety Class |
BF |
|
Standard |
IBC 60601-1-2 |
|
Features |
Auto White Balance/Freeze Function/Zoom/Touch Button Screen/USB Storage/Photo Capture/Video Recording |
|
Language |
Chinese/English/Japanese/Russian/Korean/Spanish |
