Product Feature
1/2.8 SONY CMOS Full HD Image Sensor
1920x1080 Full HD Resolution
Built-In USB Storage
IPX8 Waterproof Camera

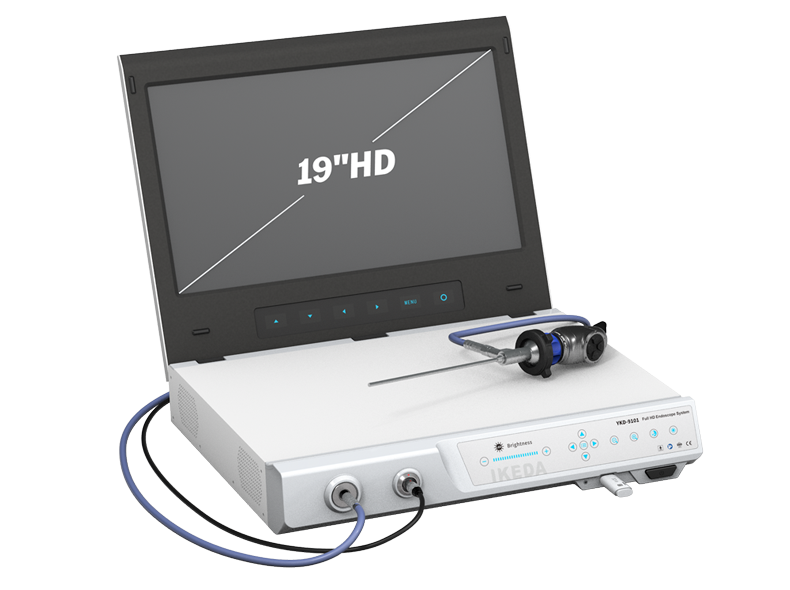

YKD-9101 Full HD portable endoscope camera
- 1/2.8 SONY CMOS FULL HD Image Sensor
- 19-inch FHD monitor, FHD camera head, and LED cold light source integrated;
- Built-in USB FULL HD image storage, Integrated photo/video recording system;
FHD Camera
- IPX8 waterproof camerae
- User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
Sony CMOS
- Better Dynamic Range: with almost +17dB difference due to pixel well depth.
- Higher Quantum Efficiency (QE) and Lower Dark Noise: contributes to better image fidelity.
- Higher Frame Rate: CMOS sensors have better shutter speeds resulting in less image blur.
- Affordability: despite their high perfor-mance, CMOS sensors don’t break the bank. This allows IKEDA to deliver stellar image clarity without inflating costs.
Product Detail
|
Camera head |
· Full HD imaging (1920 x 1080) |
| · 1/2.8" SONY CMOS | |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
|
Voltage range (current consumption) |
·100-240 V(50 VA) |
|
Frequency |
· 50-60 Hz |
|
Device protection |
· 2x T3,15 A |
|
Video system |
· Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥900 TVL | |
| · SNR: 60DB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
|
Screen Size |
· 19 Inch |
|
Light Source |
· Built-in 80W LED cold light source |
|
Recording (Options) |
· Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
|
Connections |
Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
| Protection class (acc.to IEC 60601-1) |
·I |
|
Safety Class |
BF |
|
Standard |
IBC 60601-1-2 |
|
Features |
· White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons/Touch Screen | |
| · USB storage | |
| · Photo capture/Video recording | |
|
Language |
· Chinese/English/Japanese/Korean |
