Founded more than a decade ago, IKEDA Medical specializes in endoscopic imaging systems. IKEDA endoscopes have continually innovated and broken through from SD to HD, 3D to 4K. As CMOS cameras develop, the number of choices increases. Continuous technological advancements allow procedures to be carried out in a safer manner. 1/2.3” camera provides clear images and true colors, capable of photographing moving objects without distortion, achieve both high-speed signal processing and low noise, Capture high-definition wide-area images. The procedure is even more effective when combined with IKEDA monitors and cold light sources.
~IPX8 Waterproof Camera Head, 1/2.3" Chip Global Shutter CMOS Image Sensor
~One Tap Switch for 11 Surgical Specialties
~Portable and Compact Endoscopy Unit
~All-in-One Diagnostic and Procedural Platform
~on-device HD video recording and image capturing (optional)
~USB Flash drive (optional)

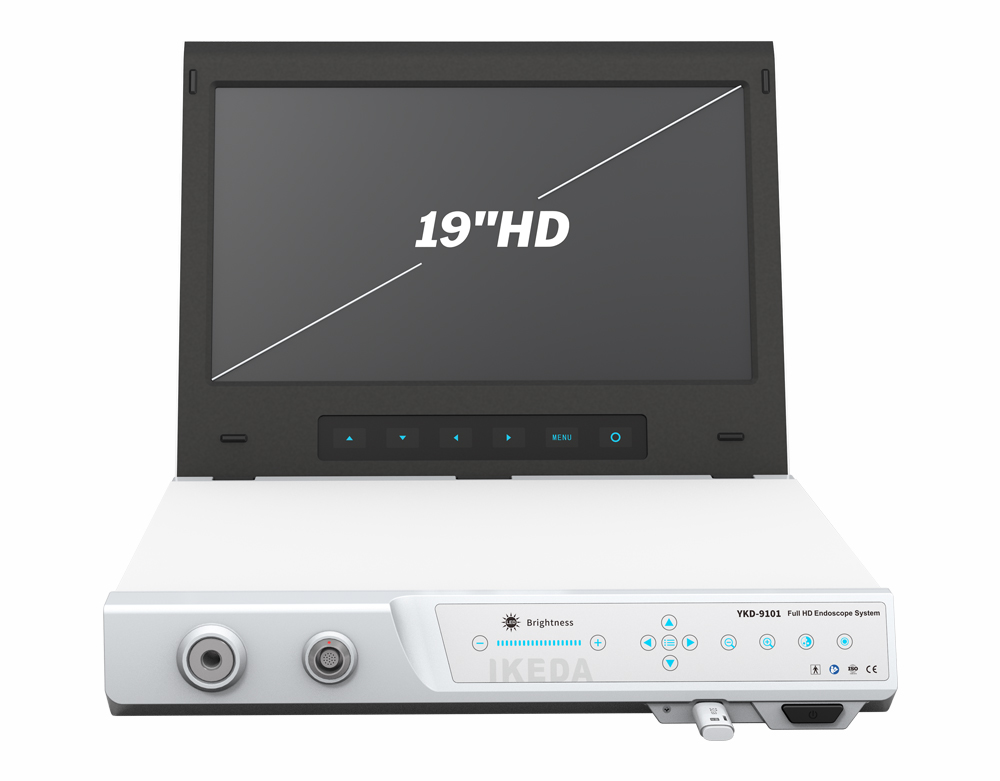

YKD-9101-H FULL HD Endoscope System
- 1/2.3" Global Shutter CMOS FULL HD Image Sensor
- Can be matched with stroboscopic light source for stroboscopic laryngoscopy
- 19-inch FHD monitor, FHD camera head, and LED cold light source integrated
- Built-in high-definition imaging workstation, Examination/surgery mode, one-key switching
- Built-in USB FULL HD image storage, Integrated photo/video recording system
- 11 surgical modes are optional
1/2.3" Global Shutter Chip FHD Camera
- FHD IPX-8 waterproof grade
- User-Definable : Photo Capture/Video Recording/
- Zoom in/Zoom Out/White Balance
- Capable of photographing moving objects without distortion
- Achieve both high-speed signal processing and low noise
- Capture high-definition wide-area images
|
Camera head |
Full HD imaging(1920x1080),1/2.3"Global Shutter CMOS |
|
Voltage range (current consumption) |
·100-240 V(50 VA) |
|
Frequency |
50-60Hz |
|
Device protection |
2xT3,15 A |
|
Video system |
Image resolution: FHD 1920× 1080 Horizontal resolution: 1200TVL SNR:60DB,Tolerance20% |
|
Screen Size |
19" |
|
Light Source |
In-Built 100W |
|
Recording (Options) |
Image format:JPG 1920x1080, Mpeg-4 (H.264 Codec): Image rate 60fps Connection:USB |
|
Connections |
Video Out Terminal, 1 DVI. 1HDM, 1*CVBS |
|
Protection Class |
·I |
|
Safety Class |
BF |
|
Standard |
IBC 60601-1-2 |
|
Features |
Auto White Balance/Freeze Function/Zoom/Touch Button Screen/USB Storage/Photo Capture/Video Recording/Laptop |
|
Language |
Chinese/English/Japanese/Korean/Russian/Spanish |
