Product Feature
1/2.8 SONY CMOS Full HD Image Sensor
1/2.8 SONY CMOS Full HD Image Sensor
1920x1080 Full HD Resolution
1920x1080 Full HD Resolution
1080P OutPut USB Storage
1080P OutPut USB Storage
60FPS FHD_Camera_Head
60FPS FHD_Camera_Head

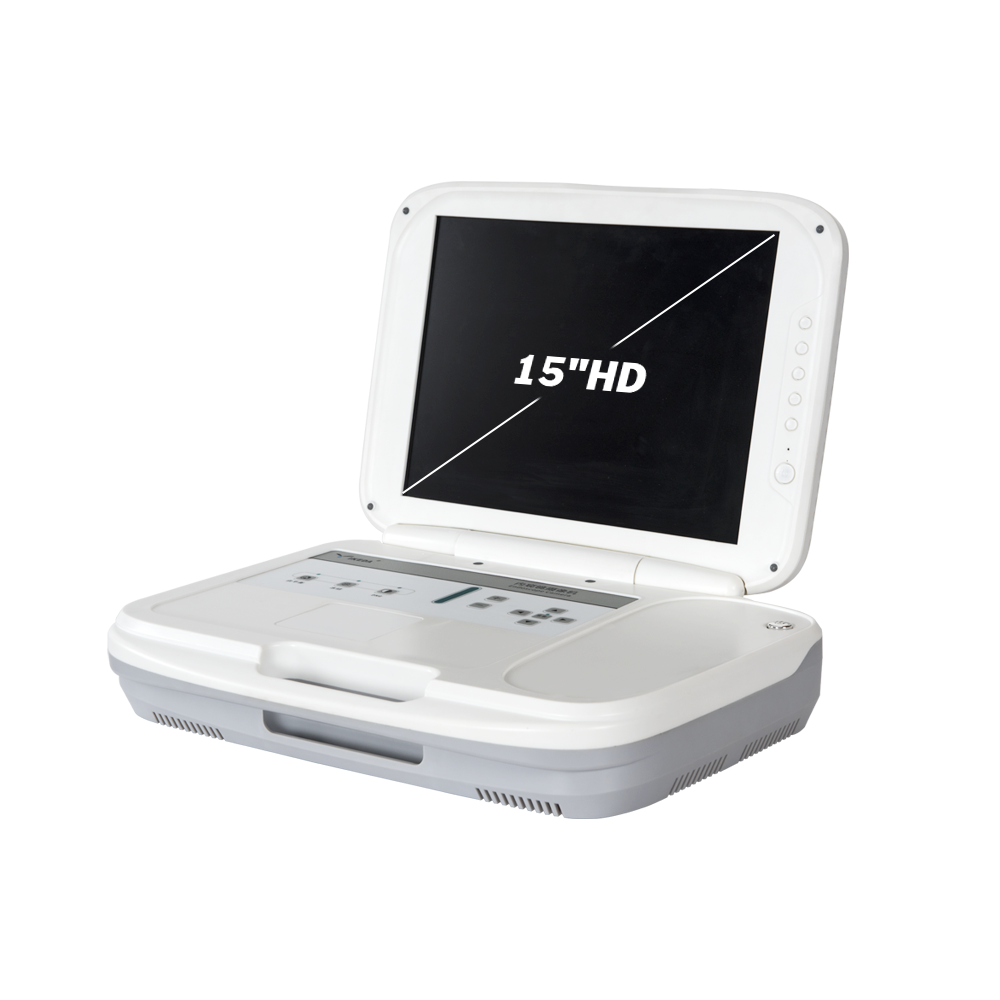

YKD-9003 Medical Portable Endoscope Camera





  • 1/2.8 SONY CMOS FULL HD Image Sensor
  • 15-inch FHD monitor, FHD camera head, and LED cold light source integrated;
  • Built-in USB FULL HD image storage, Integrated photo/video recording system;

FHD Camera





  • FHD IPX-8 waterproof grade
  • User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance

Sony CMOS





  •  Better Dynamic Range: with almost +17dB difference due to pixel well depth.
  • Higher Quantum Efficiency (QE) and Lower Dark Noise: contributes to better image fidelity.
  • Higher Frame Rate: CMOS sensors have better shutter speeds resulting in less image blur.
  • Affordability: despite their high perfor-mance, CMOS sensors don’t break the bank. This allows IKEDA to deliver stellar image clarity without inflating costs.
Product Detail

Camera head

· Full HD imaging (1920 x 1080)

· 1/2.8" SONY CMOS
· IPX8 waterproof
· Full HD optical coupler C-mount standard

Voltage range (current consumption)

·100-240 V(50 VA)

Frequency

· 50-60 Hz

Device protection

· 2x T3,15 A

Video system

· Image resolution: FHD 1920 x 1080

· Horizontal resolution: ≥1200 TVL
· SNR: 60DB,Tolerance 20%
· Scanning system: Progressive Scanning
· White balance automatically

Screen Size

· 15 Inch

Light Source

· Built-in 80W LED cold light source

Recording (Options)

· Image format: JPG 1920 x 1080

· Video format: Full HD 1920 x 1080;
Mpeg-4 (H.264 Codec); Image rate 60fps
· Connection: USB

Connections

Video out terminal:
· 1x DVI
· 1x HDMI
· 1x CVBS
Protection class (acc.to IEC 60601-1)

·I

Safety Class

BF

Standard

IBC 60601-1-2

Features

· White balance
· Freeze function
· Zoom in/Zoom out
· Touch Buttons/Touch Screen
· USB storage
· Photo capture/Video recording

Language

· Chinese/English/Japanese/Korean/Russian/Spanish
Dimensions · 440(L)x115(W)x330(H)
Weight · 6.7 KG
