Founded more than a decade ago, IKEDA Medical specializes in endoscopic imaging systems. IKEDA endoscopes have continually innovated and broken through from SD to HD, 3D to 4K. As CMOS cameras develop, the number of choices increases. Continuous technological advancements allow procedures to be carried out in a safer manner. 1/2.8” camera provides clear images and true colors. The procedure is even more effective when combined with IKEDA monitors and cold light sources.

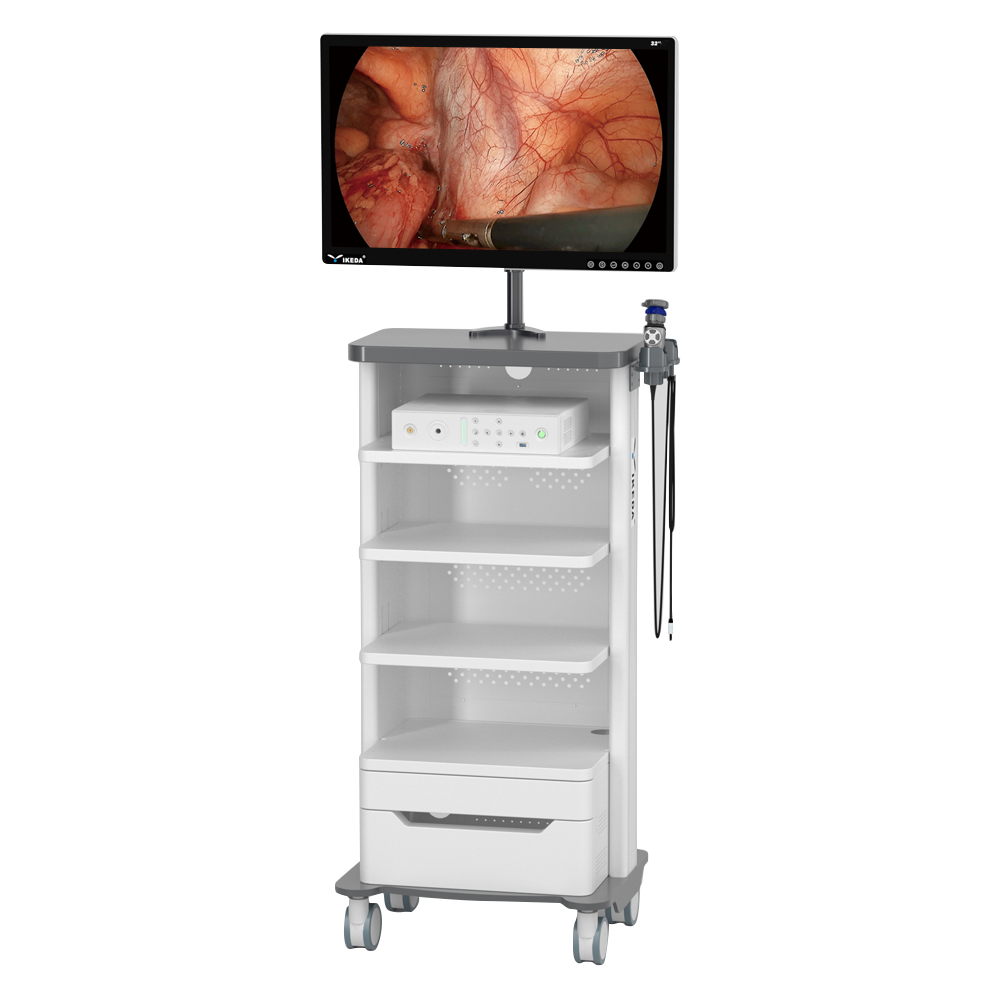

Medical Endoscopic Camera System
- Camera Control Unit-YKD-9001E
- Camera Head -IPX8 waterproof grade
- 4K Monitor
- Medical trolley -YKD-2101

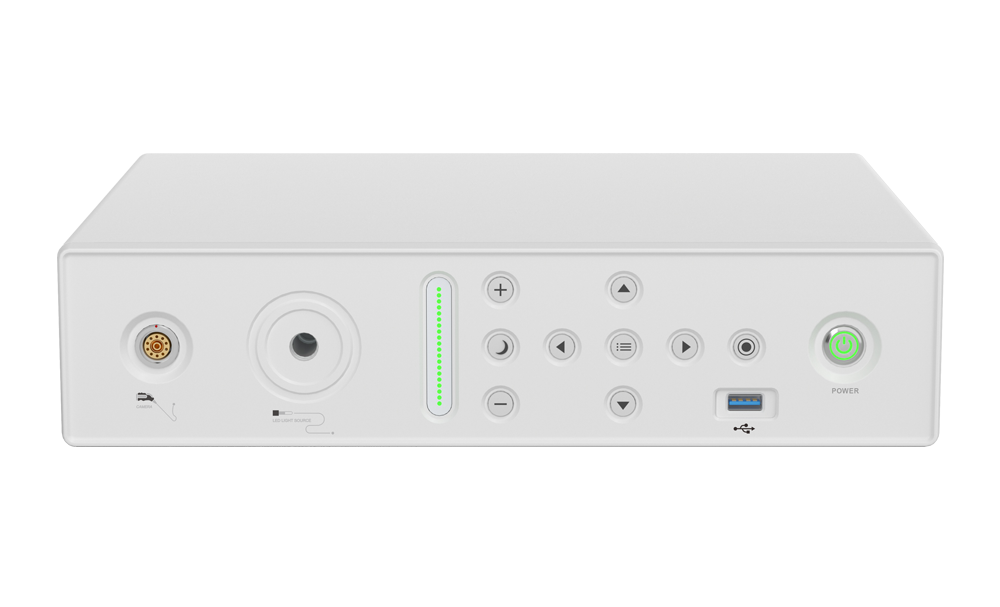

YKD-9001E Medical Endoscopic Camera
- 1/2.8 SONY CMOS FULL HD Image Sensor
- FHD camera head and LED cold light source integrated

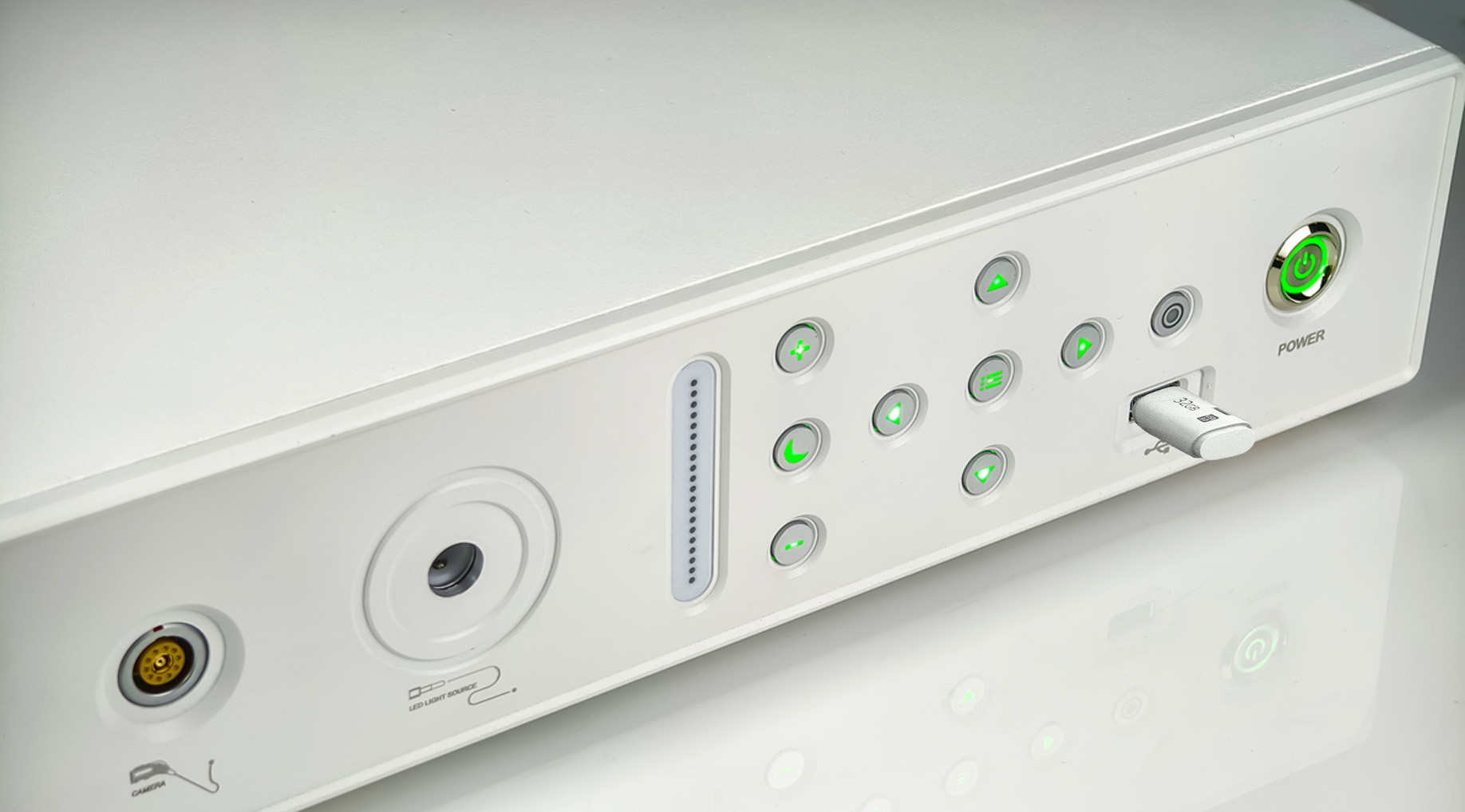

- Built-in USB FULL HD image storage, Integrated photo/video recording system

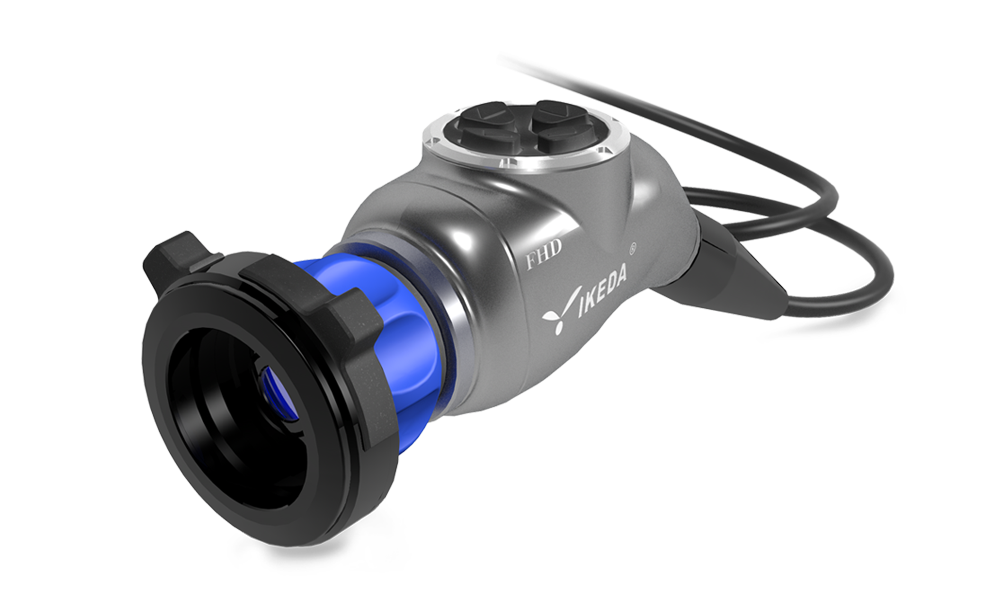

FHD Camera
- FHD IPX-8 waterproof grade
- User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance

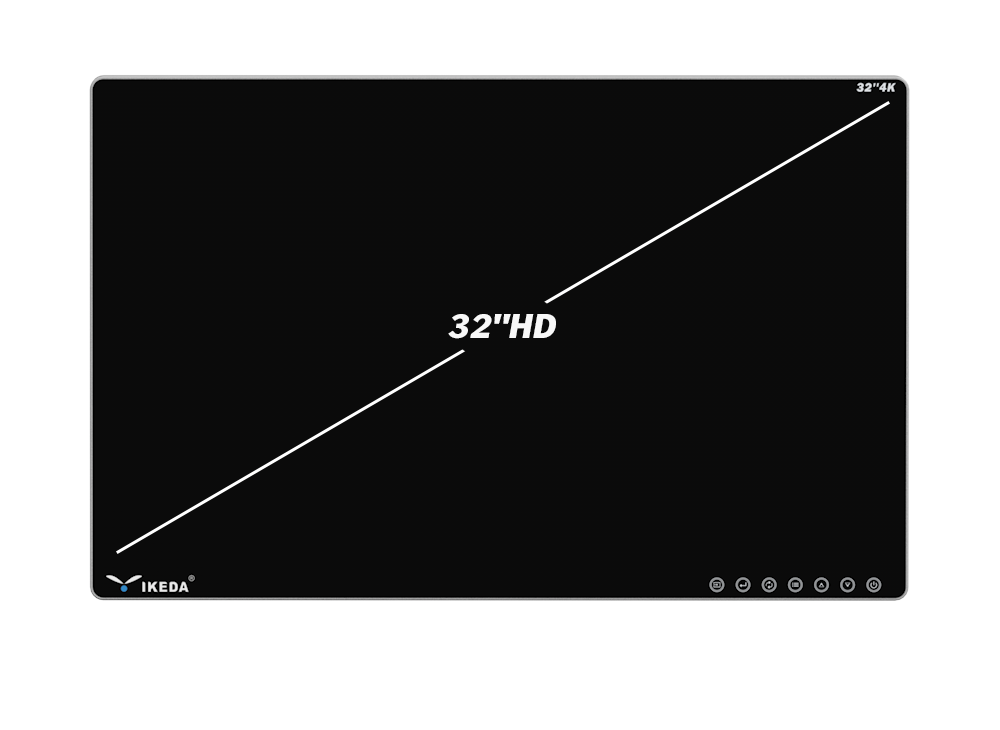

4K Monitor
- 3840x2160 ultra-high-definition image output,showing richer textures and more accurate tissue identification
- 3840x2160 pixel image output, showing richer texture, more accurate tissue identification
- Wider color gamut, truly restore the color of organs and tissues, and locate blood vessels, lymph nodes and nerves faster
- CE/ROHS/FCC certified
Sony CMOS
- Better Dynamic Range: with almost +17dB difference due to pixel well depth.
- Higher Quantum Efficiency (QE) and Lower Dark Noise: contributes to better image fidelity.
- Higher Frame Rate: CMOS sensors have better shutter speeds resulting in less image blur.
- Affordability: despite their high perfor-mance, CMOS sensors don’t break the bank. This allows IKEDA to deliver stellar image clarity without inflating costs.
|
Camera head |
· Full HD imaging (1920 x 1080) |
| · 1/2.8" SONY CMOS | |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
|
Voltage range (current consumption) |
·100-240 V(50 VA) |
|
Frequency |
· 50-60 Hz |
|
Device protection |
· 2x T3,15 A |
|
Video system |
· Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL | |
| · SNR: 60DB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
| Light source | · Built-in 80W LED cold light source |
|
Recording (Options) |
· Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
|
Connections |
Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
| Protection class (acc.to IEC 60601-1) |
·I |
|
Safety Class |
BF |
|
Standard |
IEC 60601-1-2 |
|
Features |
· White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons | |
| · USB storage | |
| · Photo capture/Video recording | |
|
Language |
· Chinese/English/Japanese/Korean/Spanish/German/Russian |
