Product Profile

Founded more than a decade ago, IKEDA Medical specializes in endoscopic imaging systems. IKEDA endoscopes have continually innovated and broken through from SD to HD, 3D to 4K. As CMOS cameras develop, the number of choices increases. Continuous technological advancements allow procedures to be carried out in a safer manner. 1/2.3” camera provides clear images and true colors. The procedure is even more effective when combined with IKEDA monitors and cold light sources.
~IPX8 Waterproof Camera Head, 1/2.3” Chip CMOS Image Sensor
~One Tap Switch for 11 Surgical Scenes
~High definition resolution 1920*1080 pixels
~on-device HD video recording and image capturing (optional)
~USB Flash drive (optional)

Product Feature
Surgical Video Recording and Playback
Surgical Video Recording and Playback
1/2.3 SONY CMOS FULL HD Image Sensor
1/2.3 SONY CMOS FULL HD Image Sensor
Can be matched with stroboscopic light source for stroboscopic laryngoscopy
Can be matched with stroboscopic light source for stroboscopic laryngoscopy
Zoom coupler,Stable clarity after focusing
Zoom coupler,Stable clarity after focusing
Built-in USB storage
Built-in USB storage
11-Surgical-Specialties
11-Surgical-Specialties

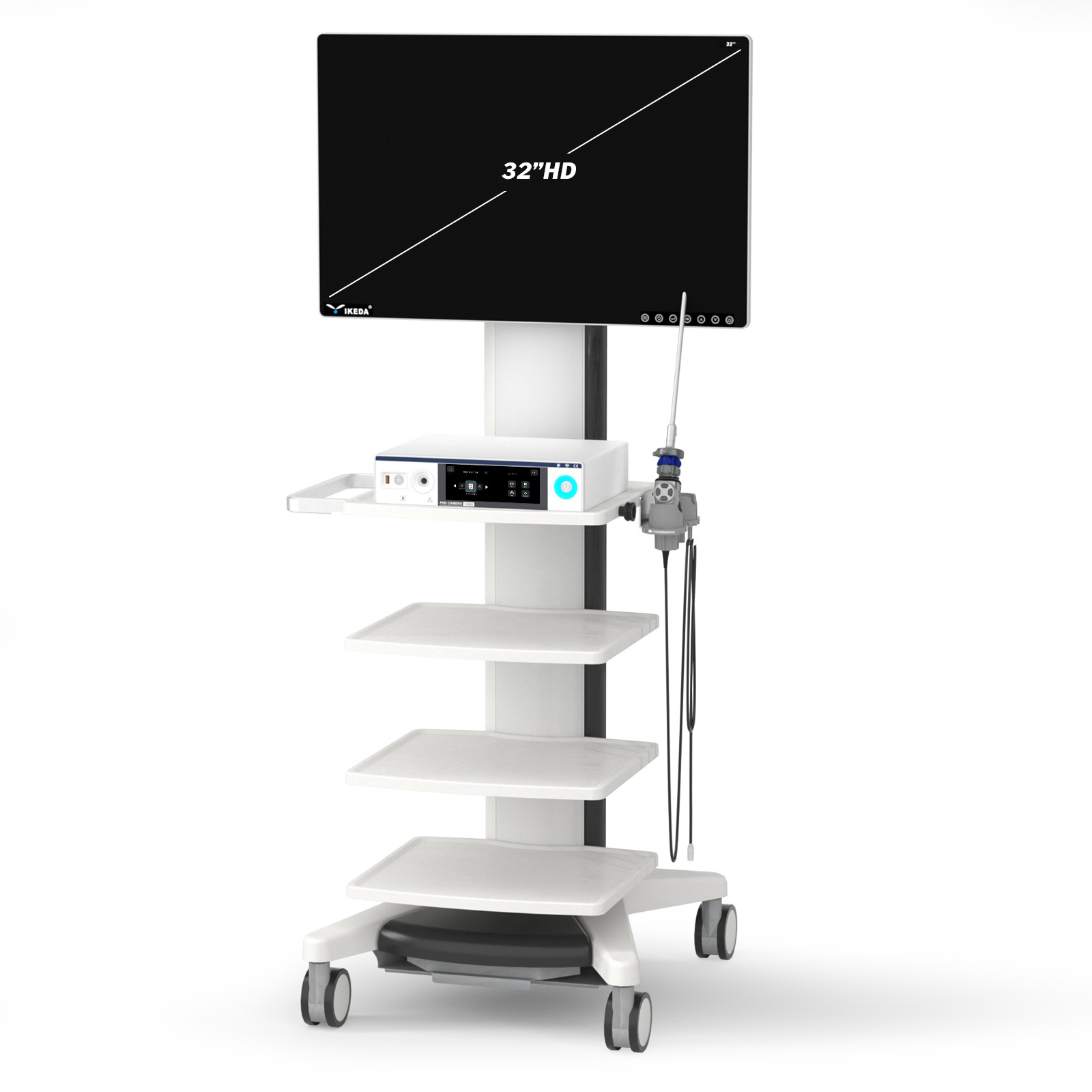

FULL HD Endoscope System

  • Camera Control Unit-YKD-9001
  • Camera Head -IPX8 waterproof grade
  • 4K Monitor
  • Medical trolley -YKD-2100




YKD-9001 FULL HD Endoscope System

  • 1/2.3" SONY CMOS FULL HD Image Sensor
  • Can be matched with stroboscopic light source for stroboscopic laryngoscopy
  • FHD camera head and LED cold light source integrated
  • Built-in USB FULL HD image storage,  Integrated photo/video recording system
  • 11 surgical modes are optional

FHD Camera

  • FHD IPX-8 waterproof grade
  • User-Definable : Photo Capture/Video Recording/
  • Zoom in/Zoom Out/White Balance

4K Monitor

  • 3840x2160 ultra-high-definition image output,showing richer textures and more accurate tissue identification
  • 3840x2160 pixel image output, showing richer texture, more accurate tissue identification
  • Wider color gamut, truly restore the color of organs and tissues, and locate blood vessels, lymph nodes and nerves faster
  • CE/ROHS/FCC certified
Product Detail

Camera head

Full HD imaging(1920x1080),1/2.3"SONY CMOS
,IPX8 waterproof, Full HD optical Coupler C-mount standard.

Voltage range (current consumption)

·100-240 V(50 VA)

Frequency

50-60Hz

Device protection

2xT3,15 A

Video system

Image resolution: FHD 1920× 1080 Horizontal resolution: 1200TVL

SNR:60DB,Tolerance20%
Scanning system:Progressive Scanning ·White balance automatically

Screen Size

/

Light Source

In-Built 100W

Recording (Options)

Image format:JPG 1920x1080, Mpeg-4 (H.264 Codec): Image rate 60fps  Connection:USB

Connections

Video Out Terminal, 1 DVI. 1HDM, 1*CVBS

Protection Class

·I

Safety Class

BF

Standard

IBC 60601-1-2

Features

Auto White Balance/Freeze Function/Zoom/Touch Button Screen/USB Storage/Photo Capture/Video Recording

Language

Chinese/English/Japanese/Korean/Russian/Spanish
