Product Profile

Founded more than a decade ago, IKEDA Medical specializes in endoscopic imaging systems. IKEDA endoscopes have continually innovated and broken through from SD to HD, 3D to 4K. As CMOS cameras develop, the number of choices increases. Continuous technological advancements allow procedures to be carried out in a safer manner. 1/2.8” camera provides clear images and true colors. The procedure is even more effective when combined with IKEDA monitors and cold light sources.

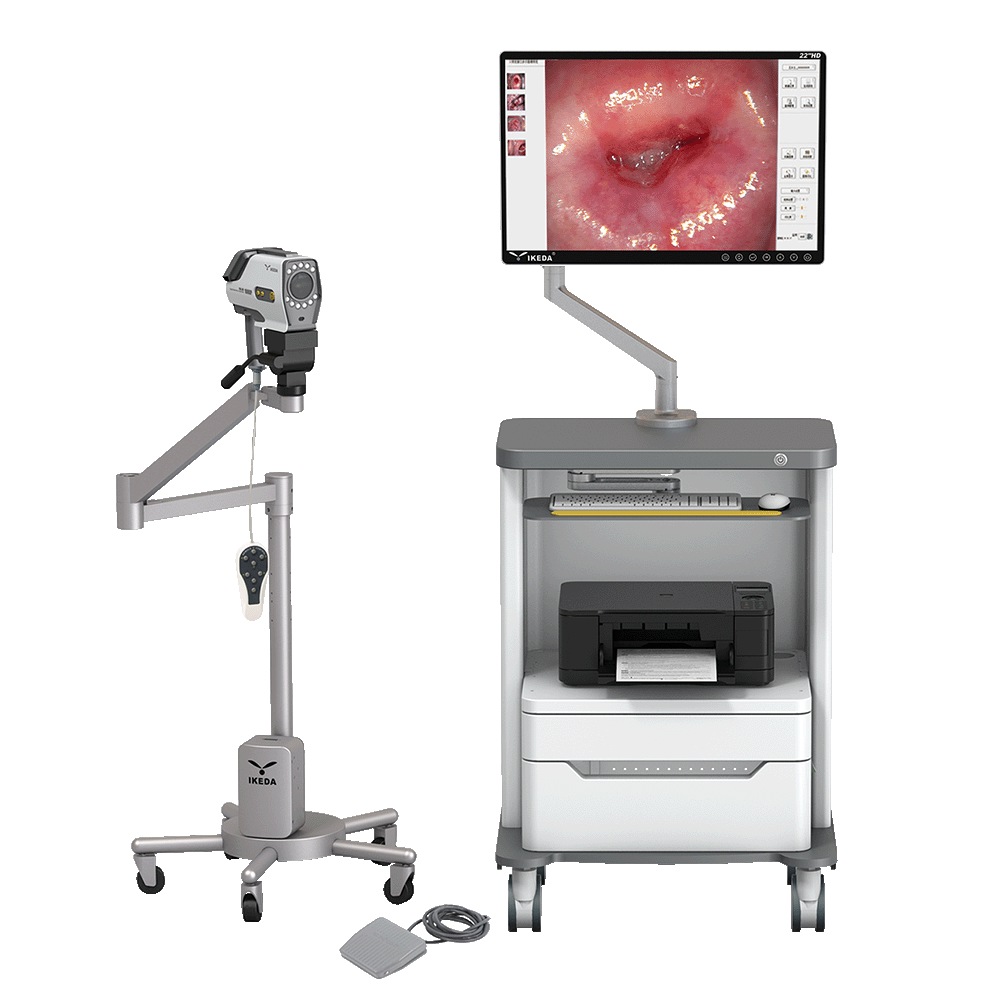

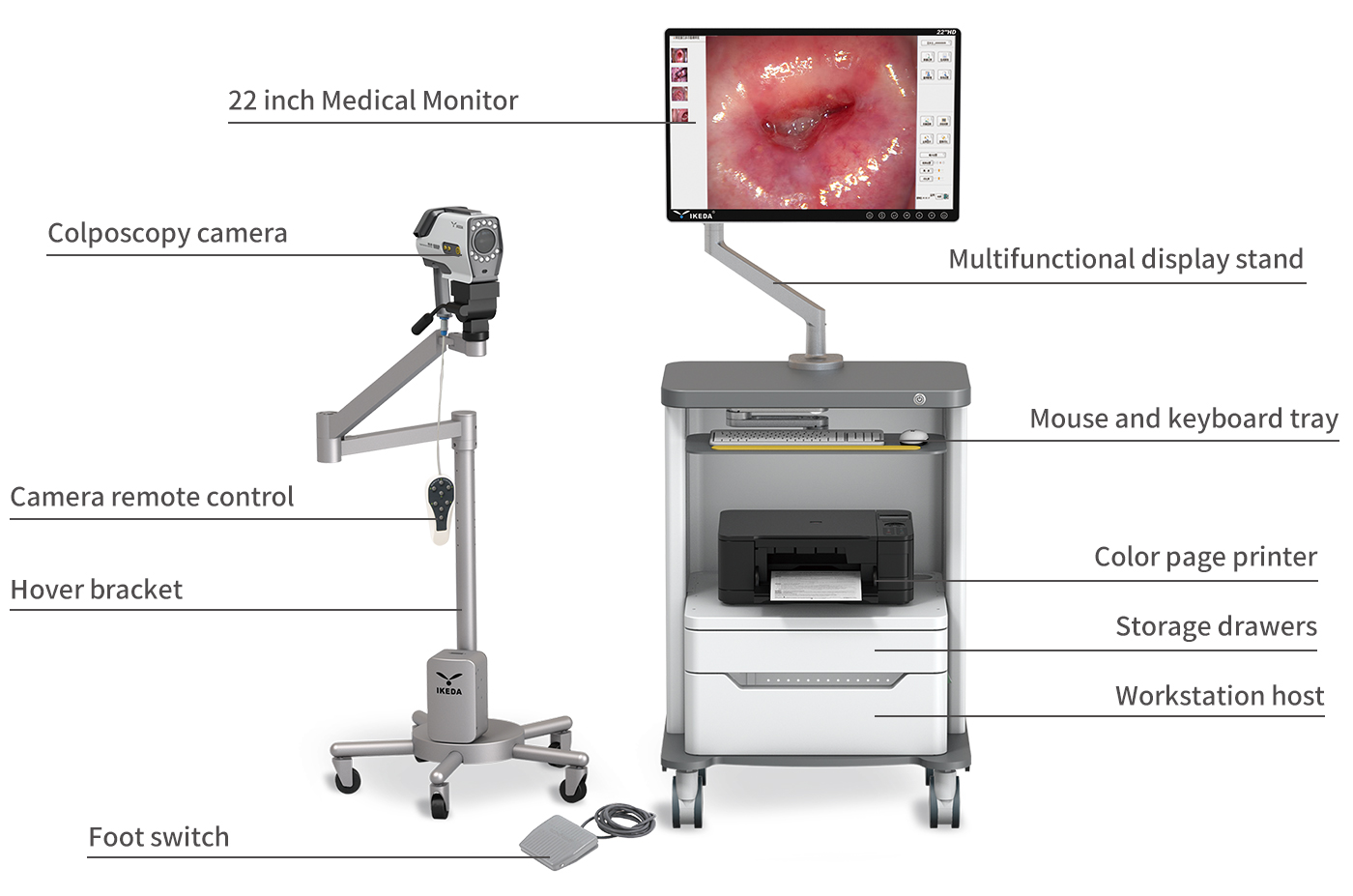

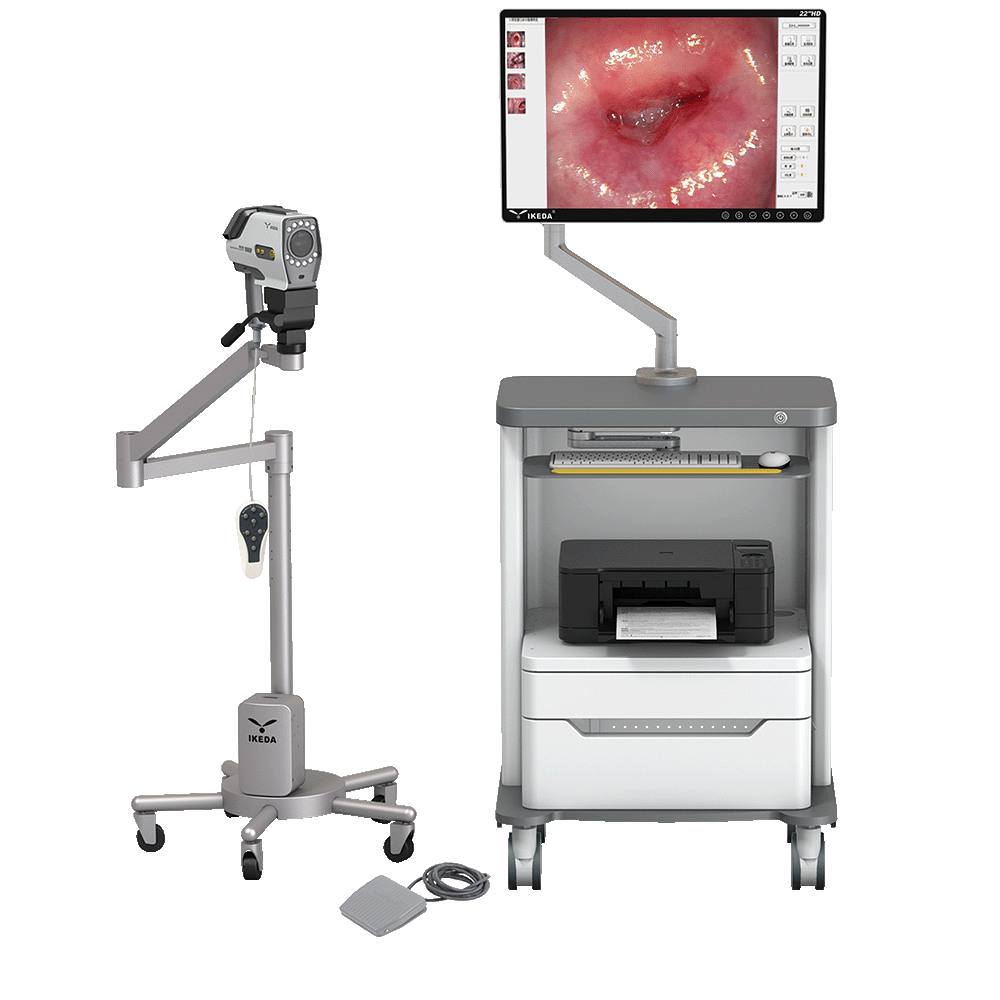

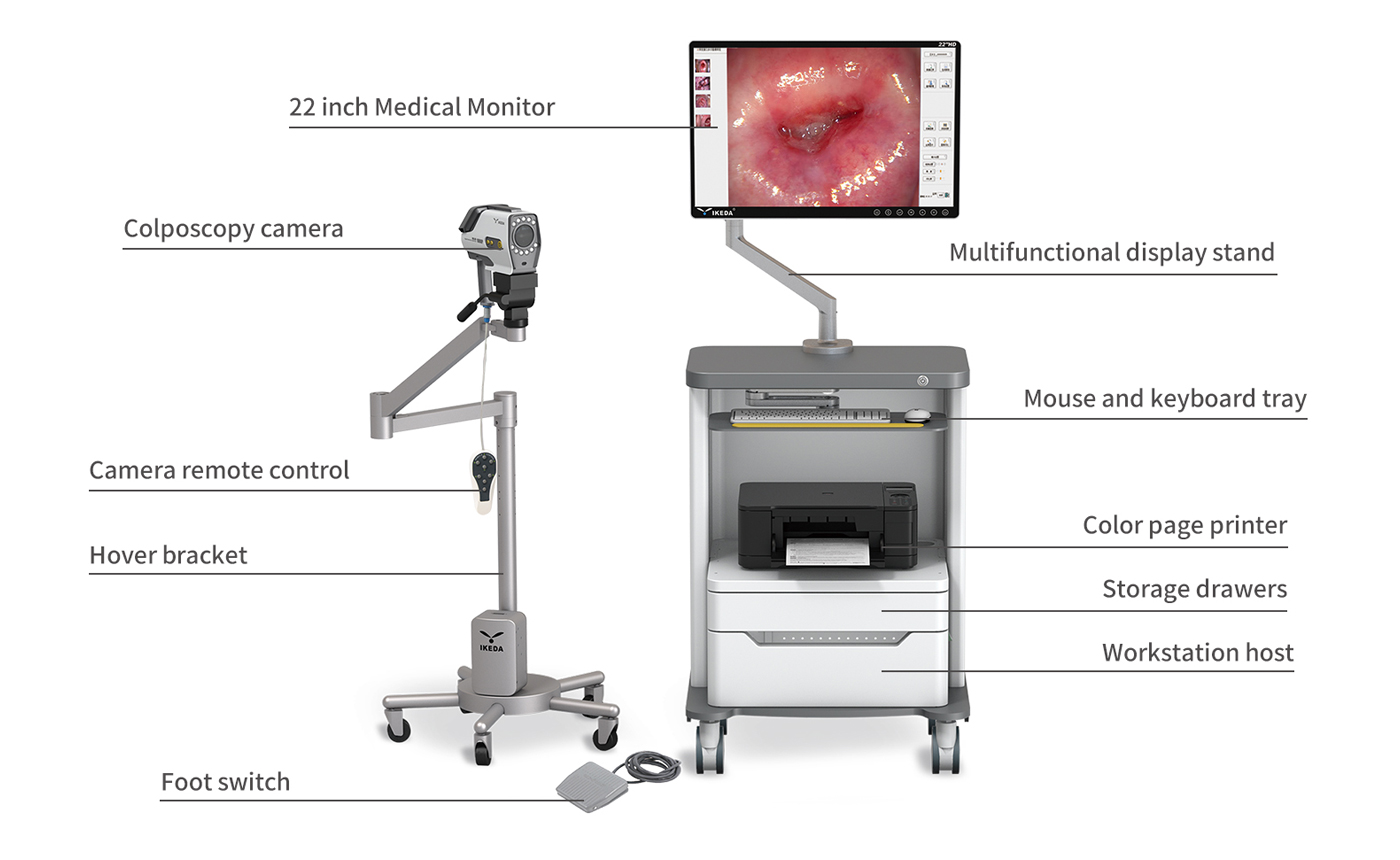

YKD-3001 Digital Electronic Colposcope

  • Colposcopy camera with timing, snapshot and freeze functions

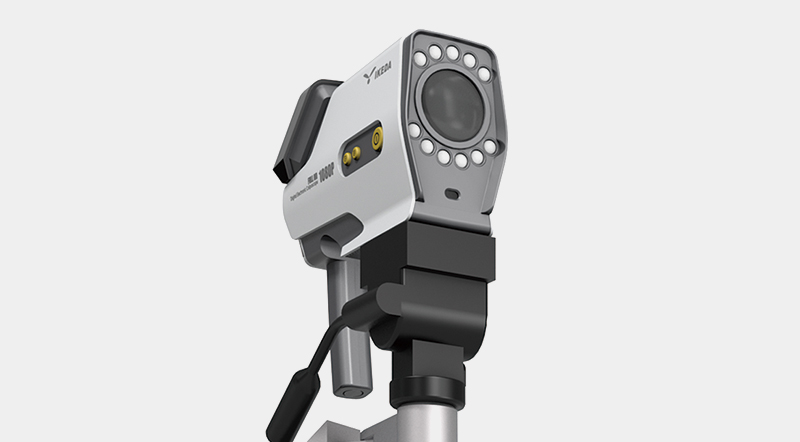

  • The light source of the camera adopts eleven high-stability LEDs, of which 10 are white light and 1 is green light.Adopt unique homogenization technology to reduce reflection, long service life and better color reproduction

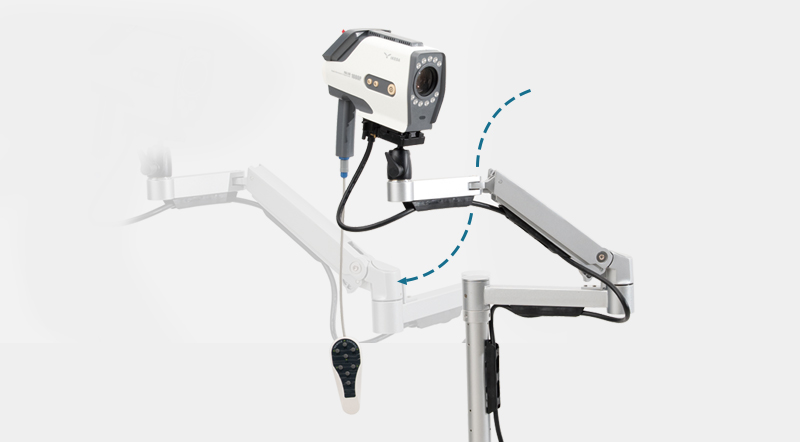

  • The camera bracket and the camera adopt an integrated design, and the unique hovering function of the bracket makes the operation more convenient
  • Full HD 1920*1080P image output, making clinical examination clearer, more realistic and more accurate
  • Camera can be configured with remote control
  • Colposcopy software compatible with hospital PACS system
Product Detail
Product number

· YKD-3001


· 1/3 inch Progressive CMOS

total pixels · 2100,000 pixels
Image size (horizontal*vertical) · 1920×1080
Scanning system

· Progressive Scanning

frame rate · (1920×1080)50p
signal to noise ratio · ≥50dB
video output

· Video output via "SDI, HDMI, CVBS"

Horizontal resolution · ≥800 lines
