AKX-9610 camera provides clear images and true colors. Veterinary procedure is even more effective when combined with IKEDA Surgical displays and cold light sources.
4K Imaging
full-screen horizontal resolution > 1800 lines
Standard White Light Mode, Multi-Display Mode.
Built-in video and picture capture function
Rich 4K output interface (3G-SDI/DVI/12G-SDI/HDMI 2.0)

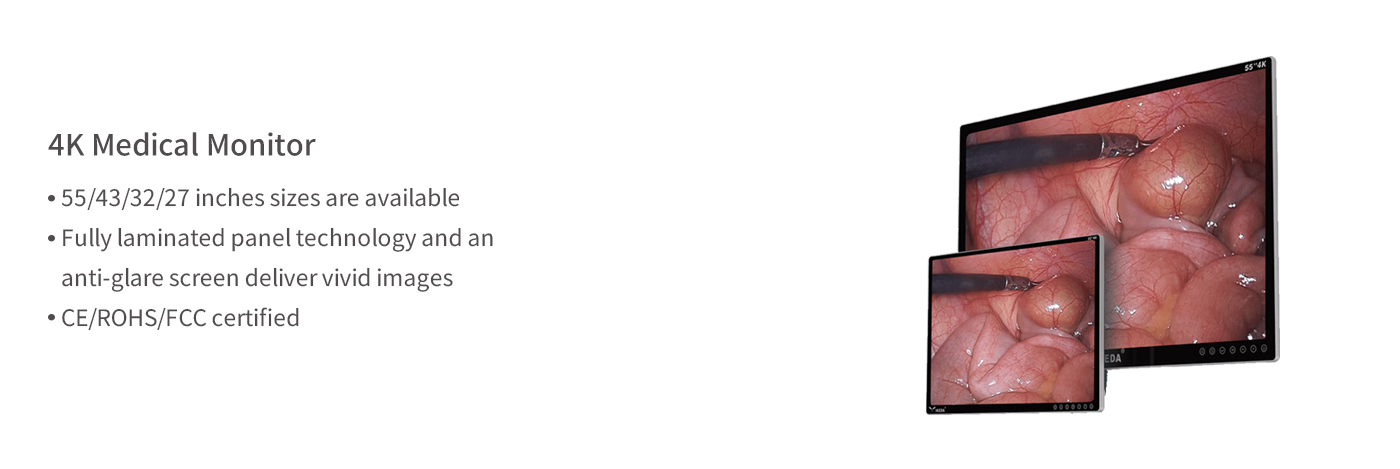

55 Inch Medical Monitor

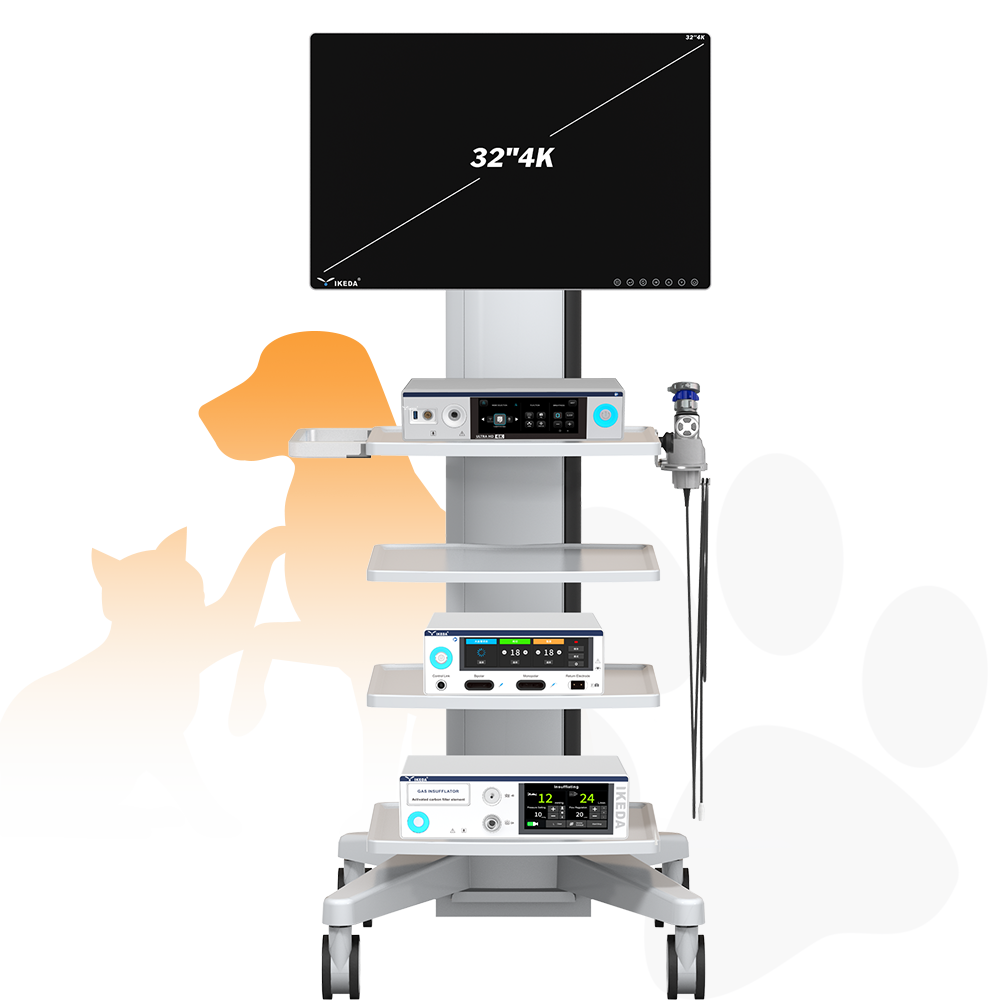

Aluminum Alloy Medical Trolley
1. Resolution: 3840*2160P

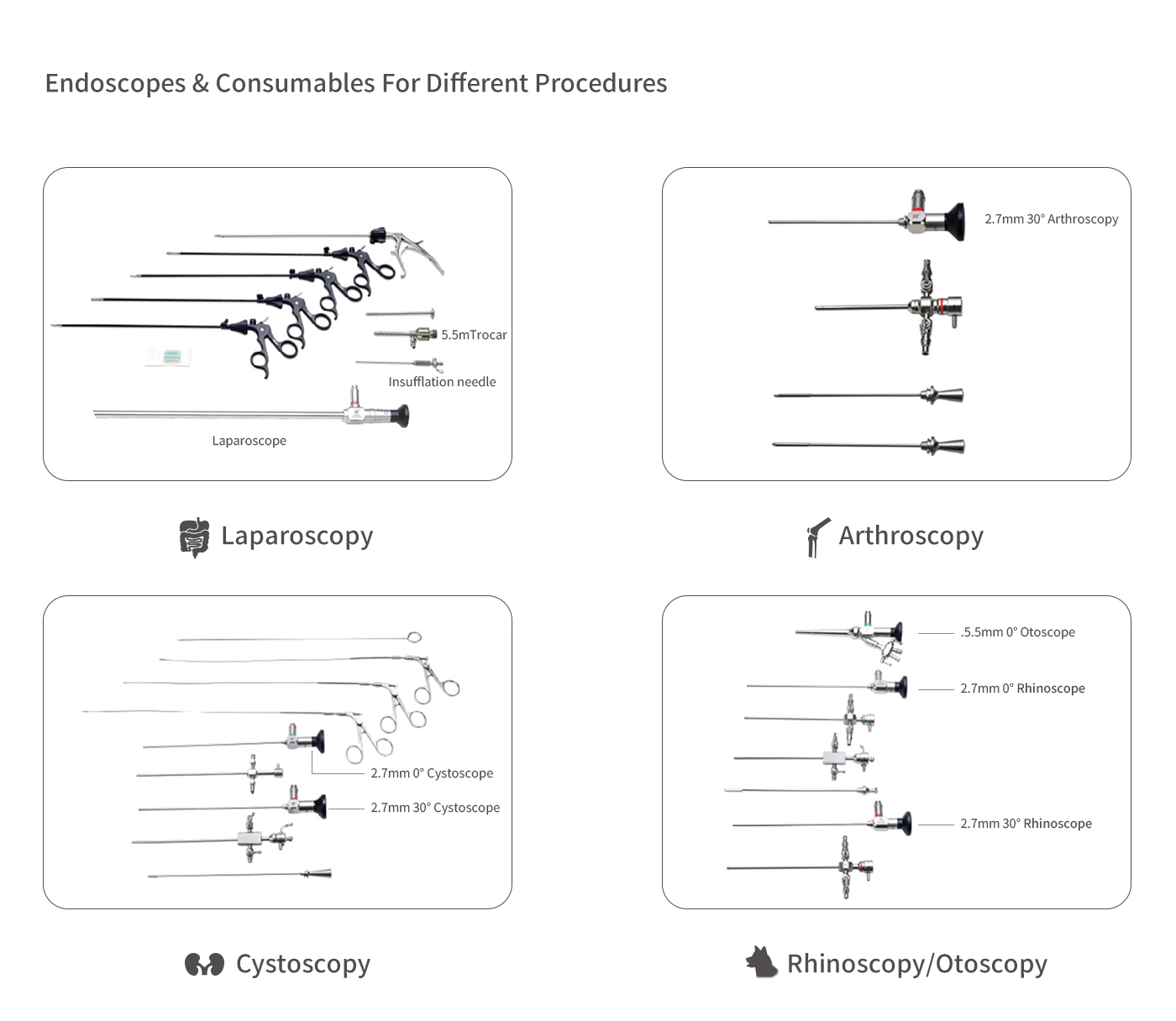

2. Endoscope: Rigid Optic Endoscope, 0°/30°
3. Function: White light/Image Freezing/Electronic Zooming in and out/Dual-Scope Display/Removing moiré etc.
4. Focusing way: Manual
5. Cold Light Source: 20 levels adjustable 1500LM

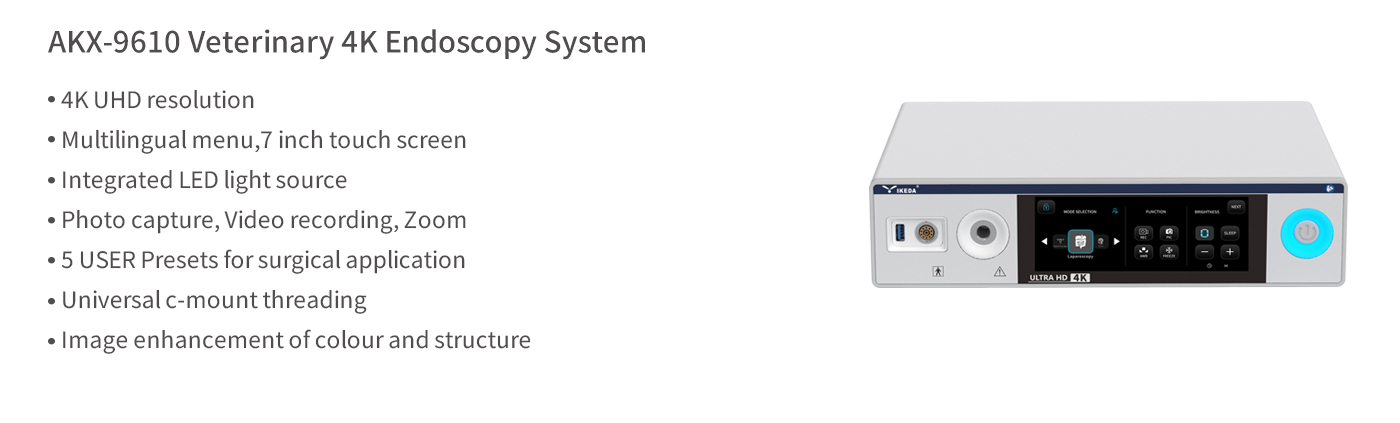

AKX-9610-4K UHD Camera Control Unit
- 4K UHD resolution
- Multilingual menu,7 inch touch screen
- Integrated LED light source
- Photo capture, Video recording, Zoom
- 5 USER Presets for surgical application
- Universal c-mount threading
- Image enhancement of colour and structure

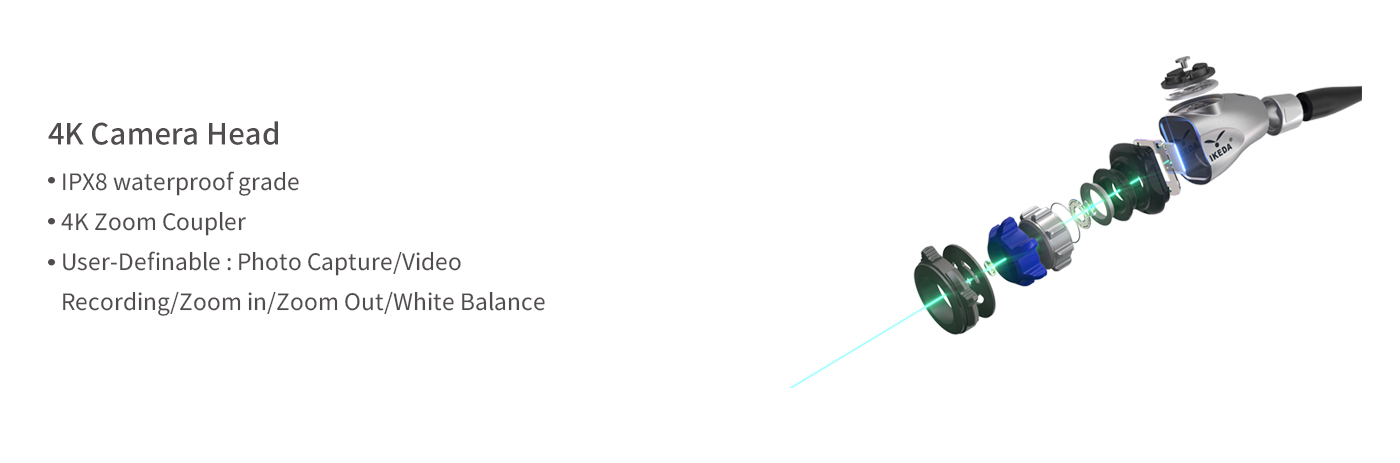

4K Camera Head
- IPX8 waterproof grade
- 4K Zoom Coupler
- User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
Animal Endoscope Application
- Examination of gastrointestinal diseases
- Examination of pancreatic and biliary diseases: pancreatic cancer, cholangitis, cholangiocarcinoma, etc.
- Laparoscopy: liver diseases, biliary diseases, etc.
- Examination of respiratory diseases: lung cancer, bronchoscopic lung biopsy and brush test, selective bronchography, etc.
- Urinary tract examination: cystitis, bladder combination, bladder tumor, renal tuberculosis, kidney stones, kidney tumor, congenital malformation of ureter, ureteral stones, ureteral tumor, etc.
|
Item ID |
AKX-9610 |
||
|
Camera |
1/2.5 Inch Full HD SONY CMOS |
||
|
Image Size |
3840*2160 |
||
|
Frame rate |
60fps |
||
|
Scanning System |
Progressive scanning |
||
|
Pixels |
8,300,000 Pixels |
||
|
Resolution |
3840*2160, 1800TVl |
||
|
LED Light Source |
80W, Cold Light Source |
||
|
Video Output |
DVI, HDMI,CVBS |
||
|
Minimum Illuminance |
0.5LUX |
Color Temperature |
5100-7000K |
|
Luminous Flux Value |
≥800lm |
Color Rendering Index |
≥90 |
|
/Monitor |
32”/55” |
AC Input |
AC100-240V 50/60HZ |
|
Video Recording |
Build-In USB |
Weight |
10kg |
|
White Balance |
AWB & MWB |
Dimension(mm) |
461*353*190 |
|
Camera Control |
WB & Photo Capture |
SNR |
50dB, Tolerance 20% |
